Type

INSULA UPM 1

INSULA UPM2

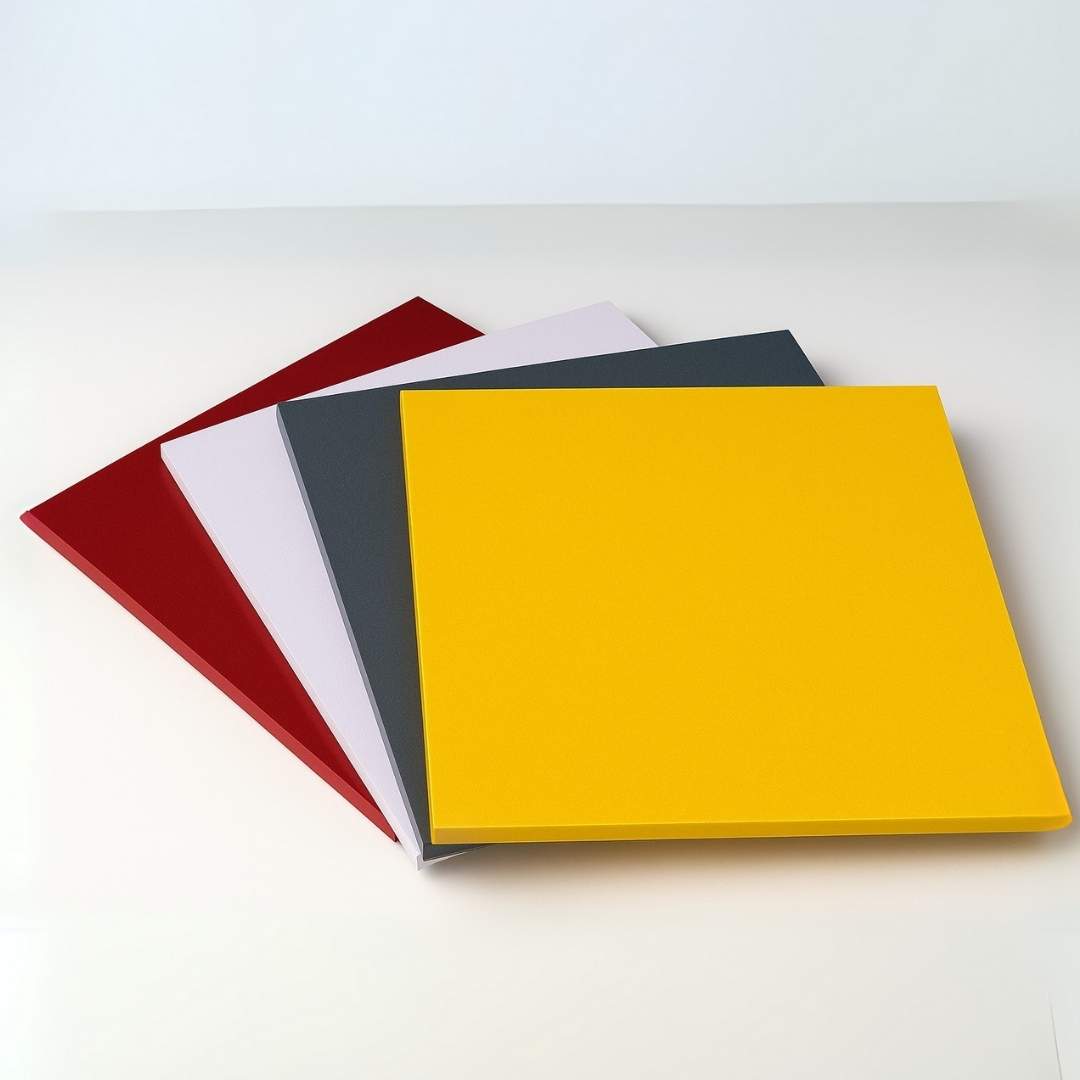

Product Image

Equivalent Grade

UPGM 201 (IEC 60893-3-5:2003)

UP1              (IS 10192:1982)

GPO1           (NEMA L1)

HM 2472 (DIN 7735-2:1975)

UPGM 203 (IEC 60893-3-5:2003)

UP2              (IS 10192:1982)

GPO3           (NEMA L1)

HM 2471 (DIN 7735-2:1975)

Color

As per Requirement

As per Requirement

Range

0.8 to 30 mm thick

0.8 to 30 mm thick

Sizes

8’X4’, 4’X4’, 4’X3’, 1M X 1M, 1.2MX1M, 2MX1M & Customized

8’X4’, 4’X4’, 4’X3’, 1M X 1M, 1.2MX1M, 2MX1M & Customized

Application

Suitable for electric insulation like LV Switchgear Protection Shroud , LV Switchgear Bus bar Support, LV panel phase barrier, Heat insulation purpose

Suitable for electric insulation like LV & MV Switchgear Protection Shroud , LV & MV Switchgear Bus bar Support, LV & MV panel phase barrier, Heat insulation purpose
